LCD screen panel AV VGA USB BNC supports various LVDS screens LCD display driver board
Product details :
| vidio input | VGA | resolution | MAx 2560*1440 |
| horizontal Freq | 30~90KHz |
| vertical Freq | 56~75Hz |
| HDMI | resolution | MAX 2560*1440 |
| video system | PAL/NTSC/SECAM |
| Sound | R/L insulation | 70dB |
| THD | 1.5~2% |
| Sin | 80 dB |
| Audio input | PC audio earphone | 0.2-2.0 Vrms |
| Audio output | 2"3w-4Q |
| Frequency Response | 100Hz~15KHz@13dB(1KHz reference signal) |
| Power supply | lnput power | 12vdc+/-10% |
| backlight | 12vdc+/-10% |
| standby consumption | <0.5w |
| OSD language | Chinese English German French ltalian Spanish Russian Arabic Persian language and so on. |
| Key function | POWER/MENU/S0URCE/UP / DOWN |
| Panel interface | EDP 1-ch,2-ch,4ch |
| Resolution | 1366x768~2560x1440 |

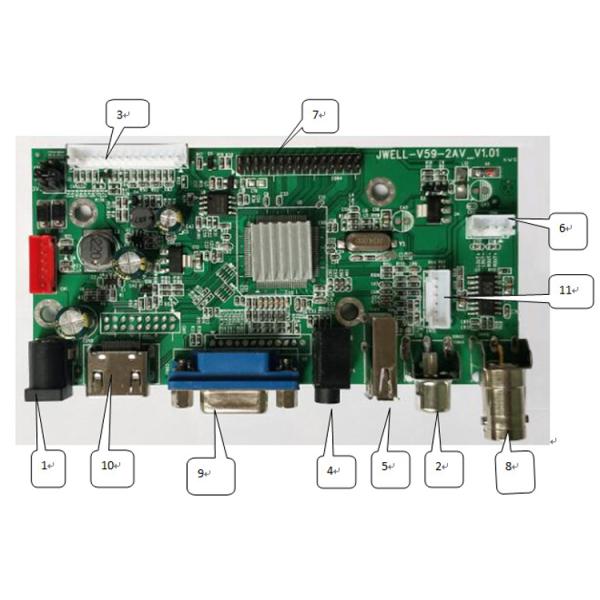

Interface description
| No | Description | No | Description |
| 1 | DC 12V | 2 | AV input External |
| 3 | IR; keyboard | 4 | Audio input |
| 5 | USB | 6 | LVDS |
| 7 | speaker | 8 | BNC |
| 9 | VGA | 10 | HDMI |
| 11 | AV input (Built-in) | 12 | LCD backlight |
